Chevrolet HHR

HHR

This photo gallery shows the installation Photos for a RVing FuseSwitch in a 2006-2011 Chevrolet HHR.

1 Remove the Fuse Panel Cover

1 Remove the Fuse Pan...

2 Locate Fuse #8 in the panel

2 Locate Fuse #8 in t...

3 Drill a 3/4 inch hoIe for the Switch (Note the Location)

3 Drill a 3/4 inch ho...

4 Install the Switch and re-attach the Harness

4 Install the Switch ...

5 Place Fuse connectors into HHR's fuse panel in slot #8

5 Place Fuse connecto...

6 Reinstall the Fuse Panel cover

6 Reinstall the Fuse ...

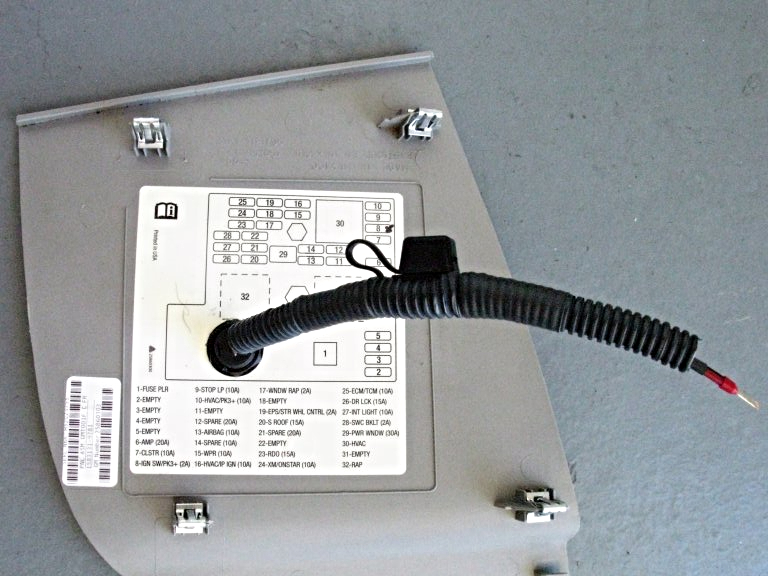

7 The RVing FuseSwitch(Tm) as installed

7 The RVing FuseSwitc...
